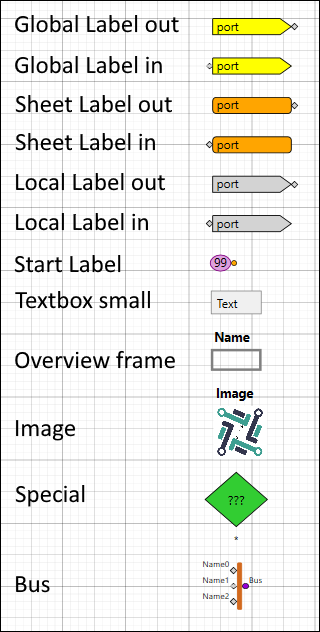

The tool palette at the bottom is used to drag various types of objects onto the project window. The image shows the available objects.
Label Scope
The scope of labels varies depending on their type:
-
Global Labels
Available throughout the entire project and can be referenced anywhere. -
Sheet Labels
Used for transitions between the inside and outside of a sheet. -
Local Labels
Valid only within the sheet where they are defined.
Start Label
The Start Label is a special type of label used to define the initialization order. This order is determined by the Start Label and the existing hierarchy within the project.

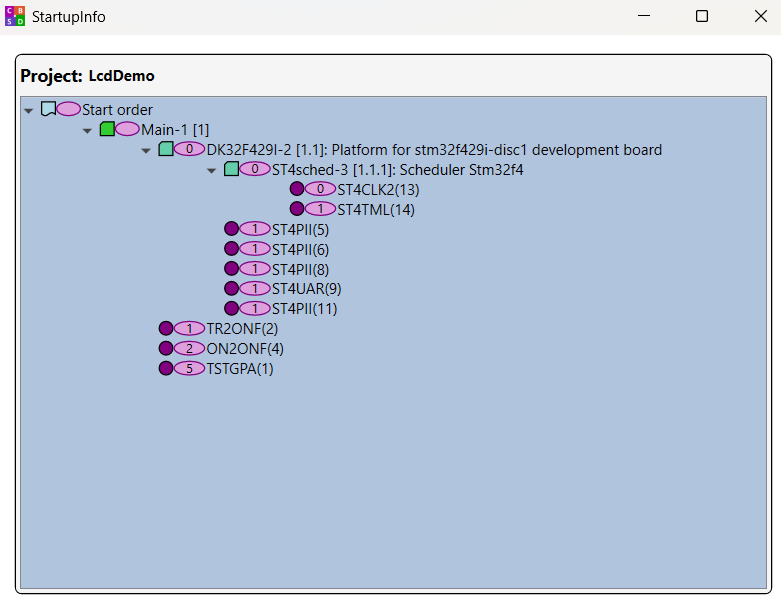

An overview of the initialization order can be found in the image on the right.
The overview can be accessed from the top menu under the Start item
